FEATURES

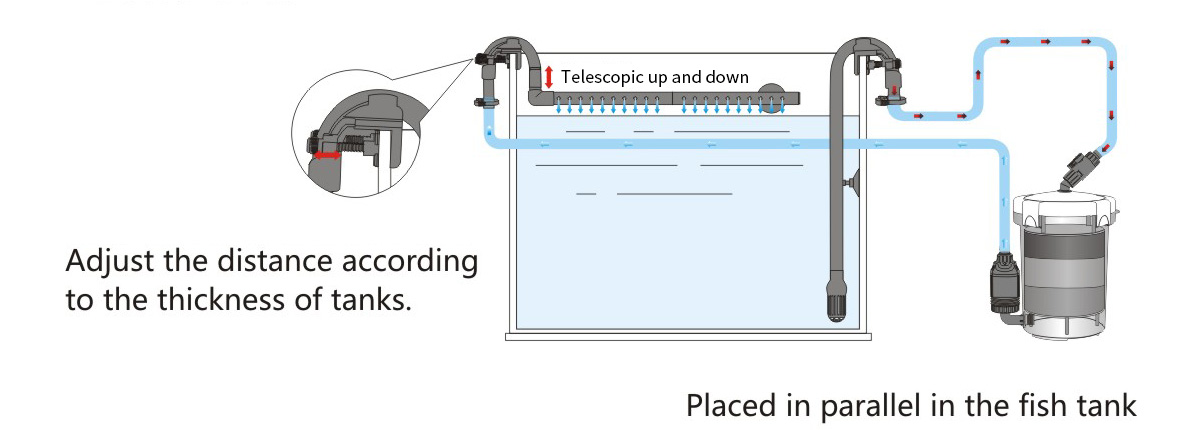

INSTALLATION DIAGRAM
Model |
Voltage |
Frequency |
Power |
UV Power |
H-max |
Output |
Cable length |
Weight |
Dimensions L×W×H |
HW-702A |
110V/220V/240V |
50Hz/60Hz |
24W |
/ |
1.4m |
1000L/h |
1.8m |
3.5kg |
232×232×395mm |
HW-702B |
110V/220V/240V |
50Hz/60Hz |
24W |
9W |
1.4m |
1000L/h |
1.8m |
3.5kg |
232×232×395mm |
HW-703A |
110V/220V/240V |
50Hz/60Hz |
30W |
/ |
2.0m |
1400L/h |
1.8m |
4.5kg |
270×270×440mm |
HW-703B |
110V/220V/240V |
50Hz/60Hz |
30W |
9W |
2.0m |
1400L/h |
1.8m |
4.5kg |
270×270×440mm |
HW-704A |
110V/220V/240V |
50Hz/60Hz |
45W |
/ |
2.5m |
2000L/h |
1.8m |
5.0kg |
300×300×490mm |
HW-704B |
110V/220V/240V |
50Hz/60Hz |
45W |
9W |
2.5m |
2000L/h |
1.8m |
5.0kg |
300×300×490mm |
