CTF/CTF-B Series Frequency Variation Pump Custom

Home / Products / Garden Equipment / Pond Water Pump / CTF/CTF-B Series Frequency Variation Pump

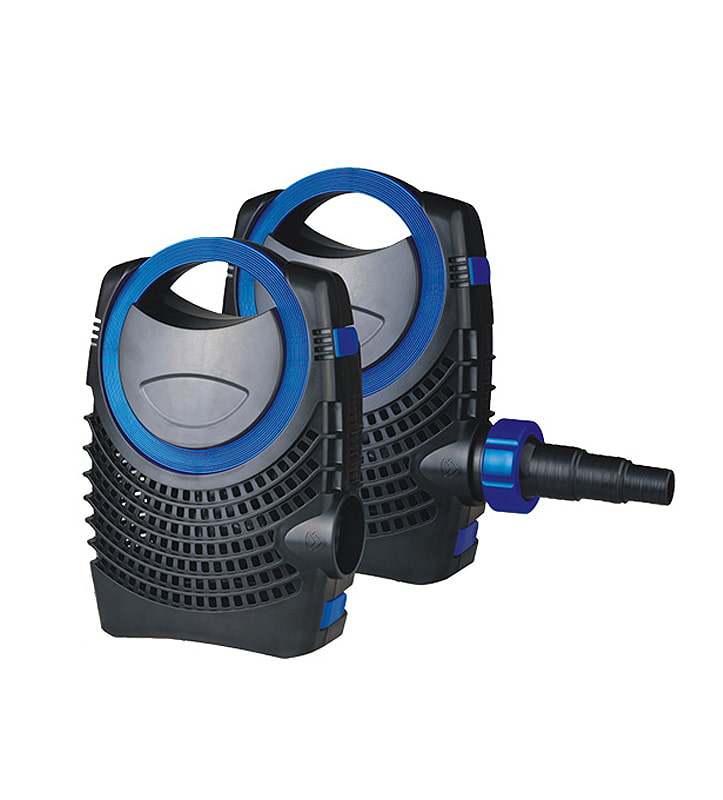

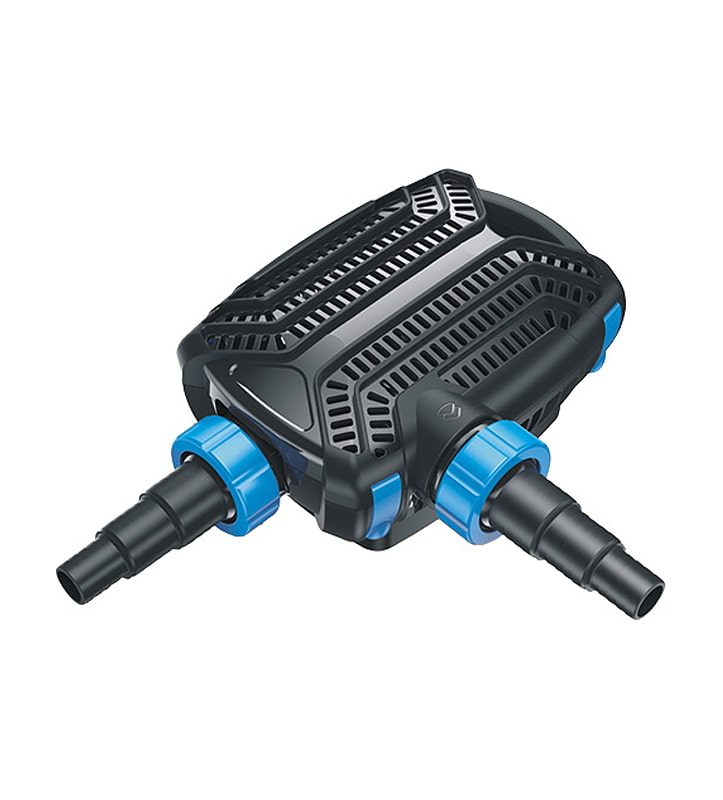

CTF/CTF-B Series Frequency Variation Pump

CTF/CTF-B Series Frequency Variation Pump

Installation video

Model

Voltage

Frequency

Power

H-max

Output

Hose Adapter

Cable length

Weight

Dimensions L×W×H

CTF-2800/B

220V-240V

50Hz

10W

2m

3000L/h

25/32/38mm

10m

2.9kg

258×183×121mm/246×186×120

CTF-3800/B

220V-240V

50Hz

20W

2.8m

3600L/h

25/32/38mm

10m

2.9kg

258×183×121mm/246×186×120

CTF-4800/B

220V-240V

50Hz

30W

4m

4500L/h

25/32/38mm

10m

2.9kg

258×183×121mm/246×186×120

CTF-5800/B

220V-240V

50Hz

40W

4.8m

5200L/h

25/32/38mm

10m

2.9kg

258×183×121mm/246×186×120

CTF-5000/B

220V-240V

50Hz

30W

3.3m

5000L/h

25/32/38mm

10m

3.6kg

258×183×121mm/246×186×120

CTF-6000/B

220V-240V

50Hz

40W

4.2m

6000L/h

25/32/38mm

10m

3.6kg

258×183×121mm/246×186×120

CTF-7000/B

220V-240V

50Hz

50W

4.6m

7000L/h

25/32/38mm

10m

3.6kg

258×183×121mm/246×186×120

CTF-8000/B

220V-240V

50Hz

70W

5.6m

8000L/h

25/32/38mm

10m

3.6kg

258×183×121mm/246×186×120

CTF-10000/B

220V-240V

50Hz

80W

6m

10000L/h

25/32/38mm

10m

4.5kg

280×240×140mm/278×217×132mm

CTF-12000/B

220V-240V

50Hz

100W

6.5m

12000L/h

25/32/38mm

10m

4.5kg

280×240×140mm/278×217×132mm

CTF-14000/B

220V-240V

50Hz

120W

7m

14000L/h

25/32/38mm

10m

4.5kg

280×240×140mm/278×217×132mm

CTF-16000/B

220V-240V

50Hz

140W

7.5m

16000L/h

25/32/38mm

10m

4.5kg

280×240×140mm/278×217×132mm


Sensen Group Co., LTD is a leading China CTF/CTF-B Series Frequency Variation Pump suppliers and odm CTF/CTF-B Series Frequency Variation Pump factory in China, we are actively creating a new industry-leading retail model, integrating online and offline, developing and promoting the "Sensen House" APP, and extending the experience and services of Sensen products to every consumer. We will promote the brand awareness of Sensen in an all-round way and actively lead the development of the industry.
